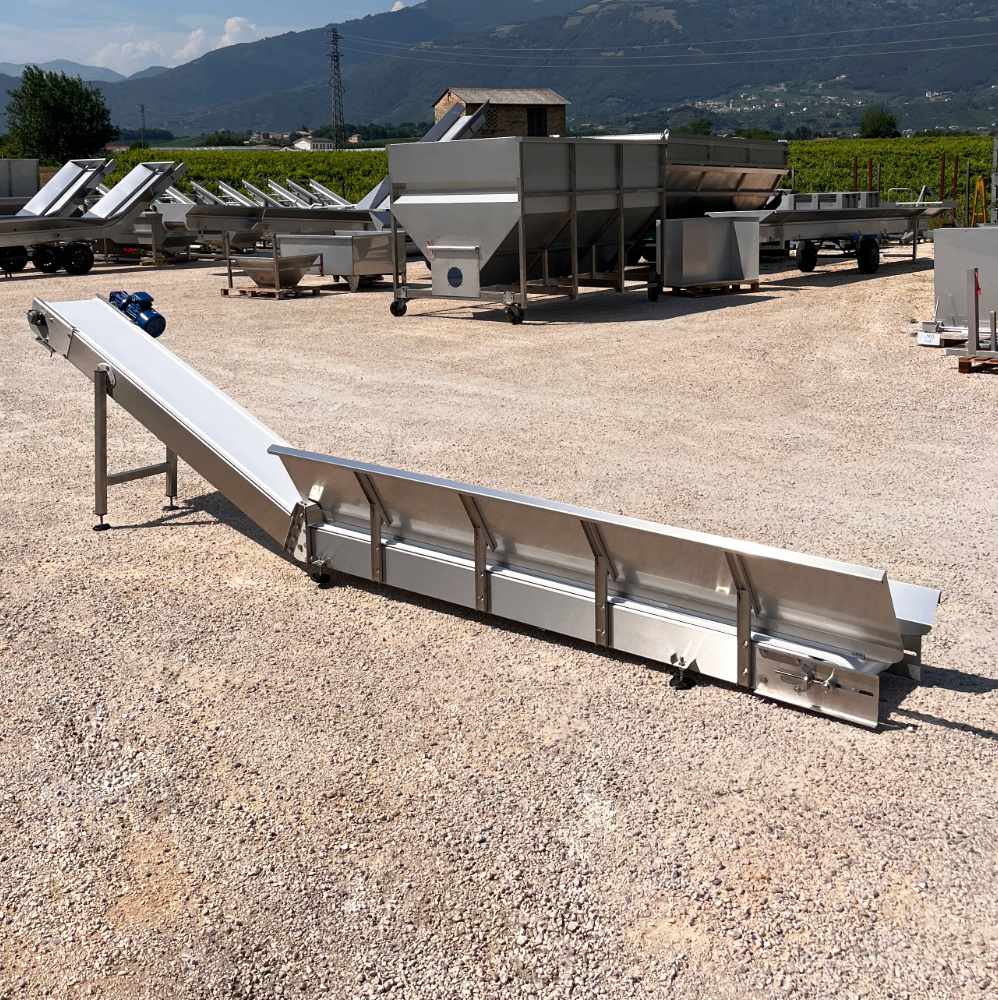

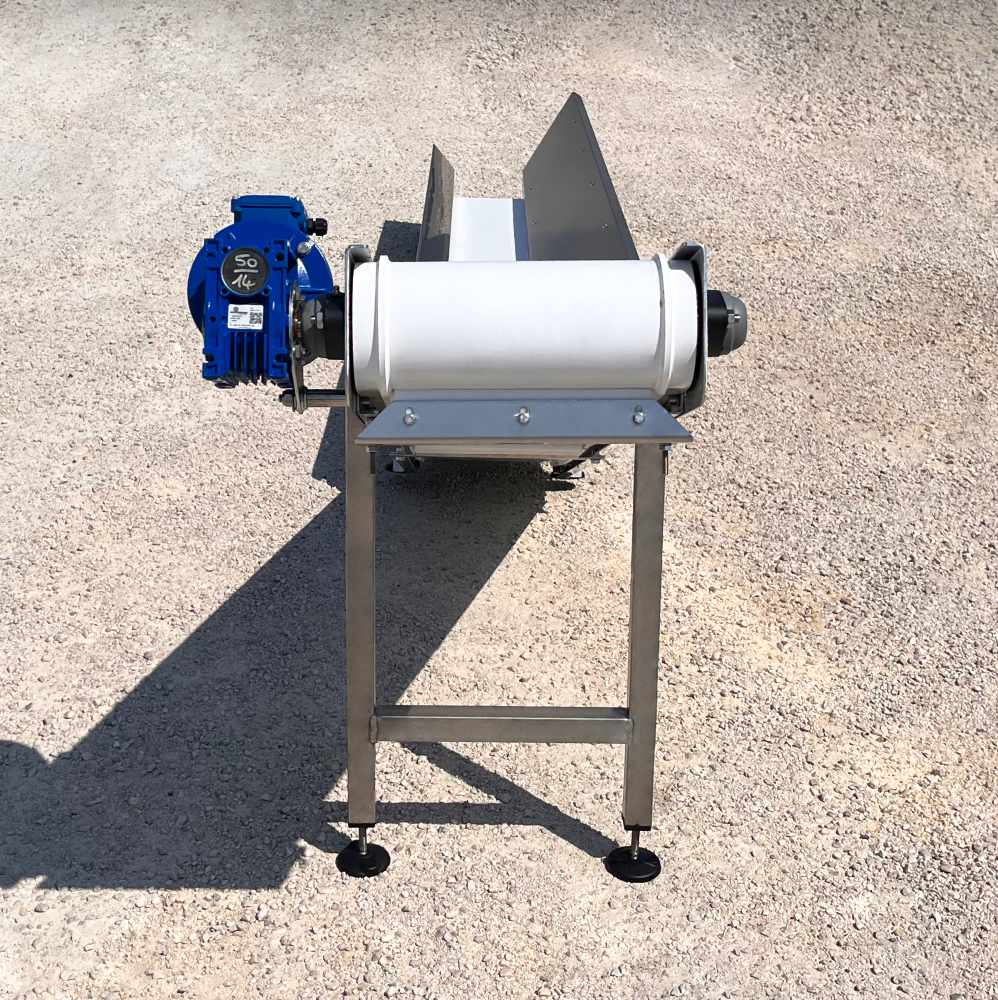

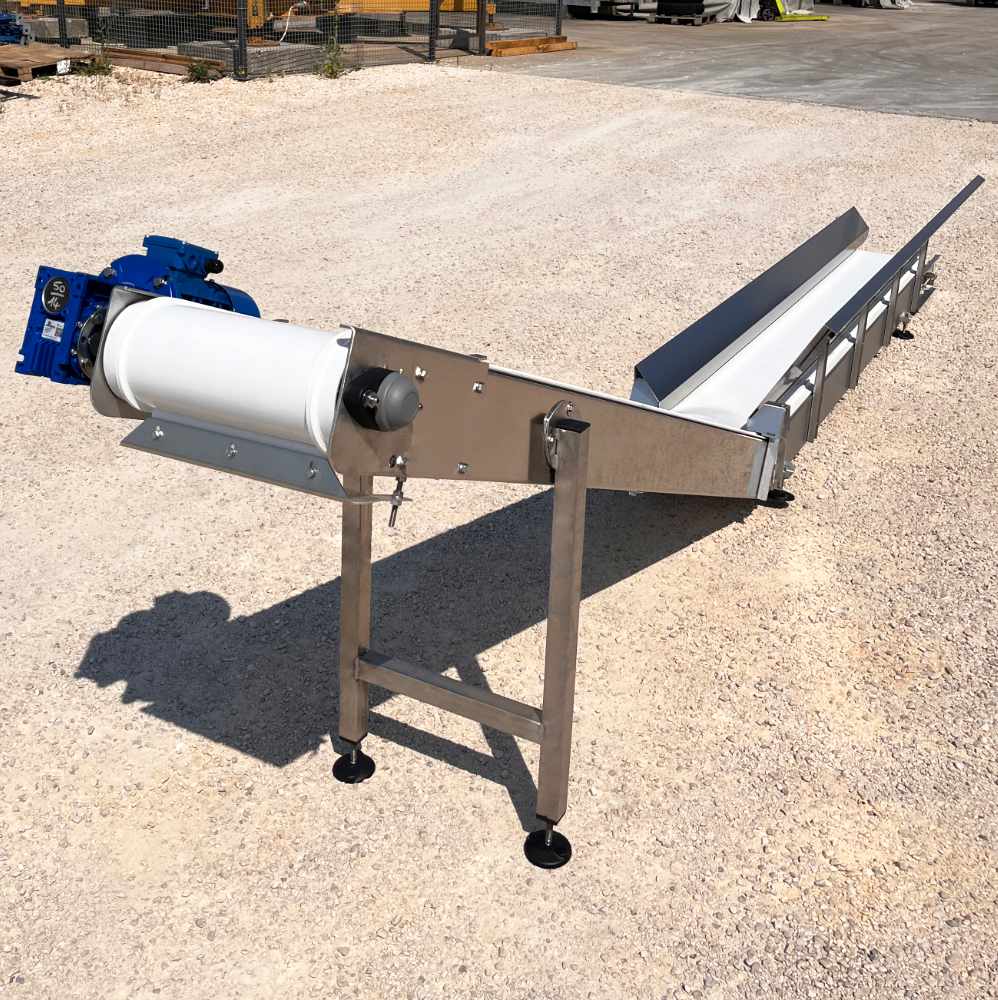

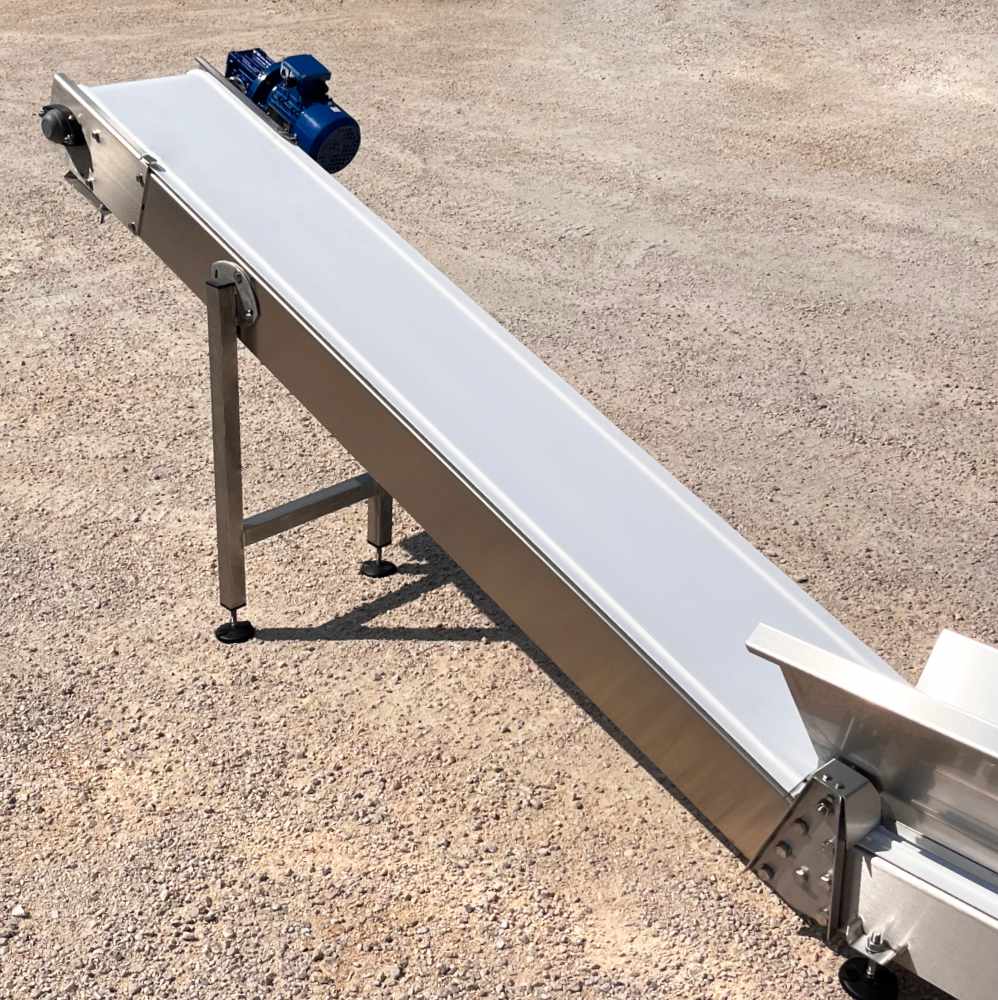

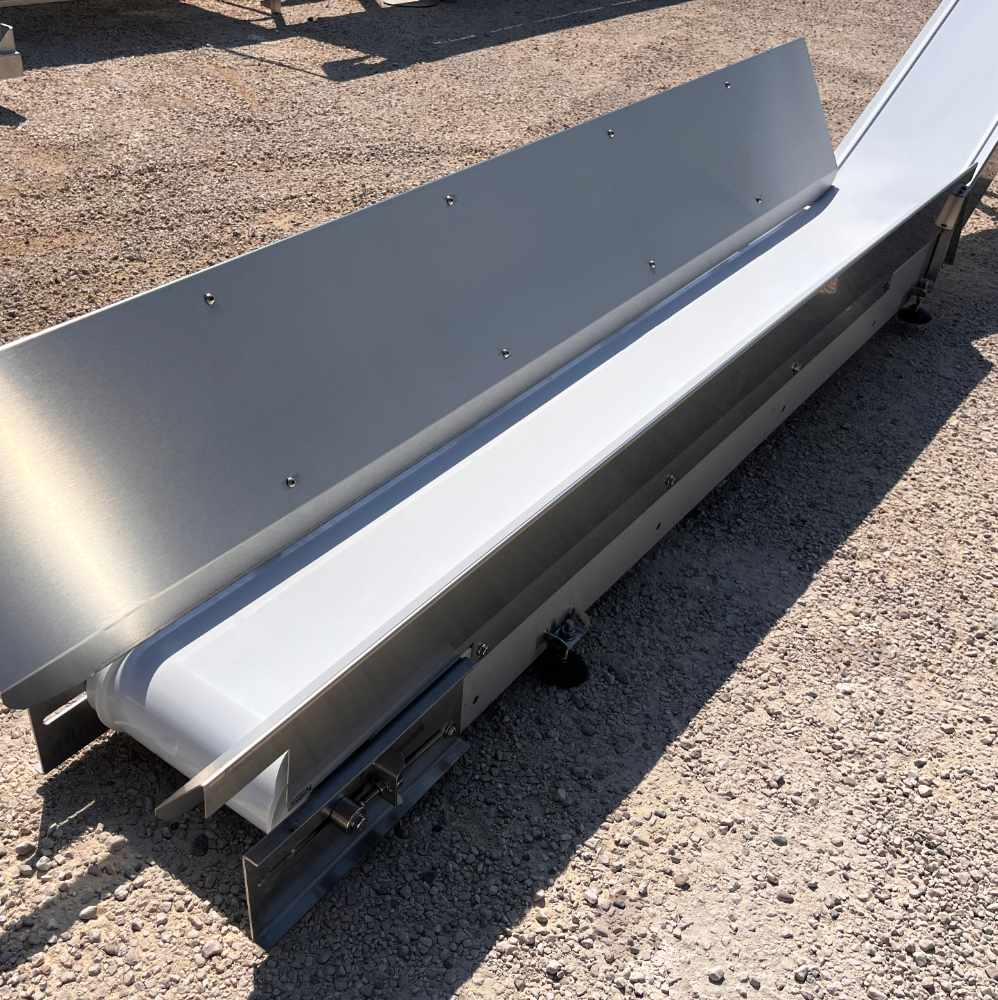

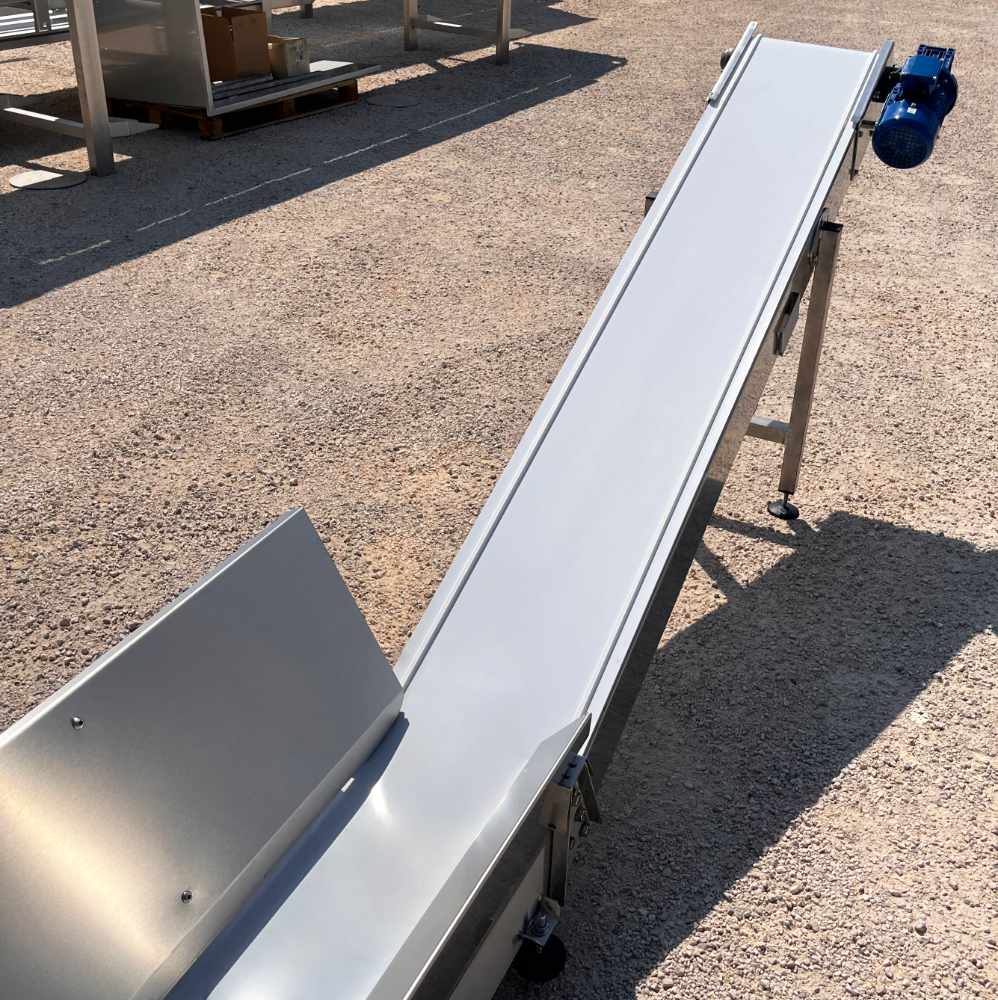

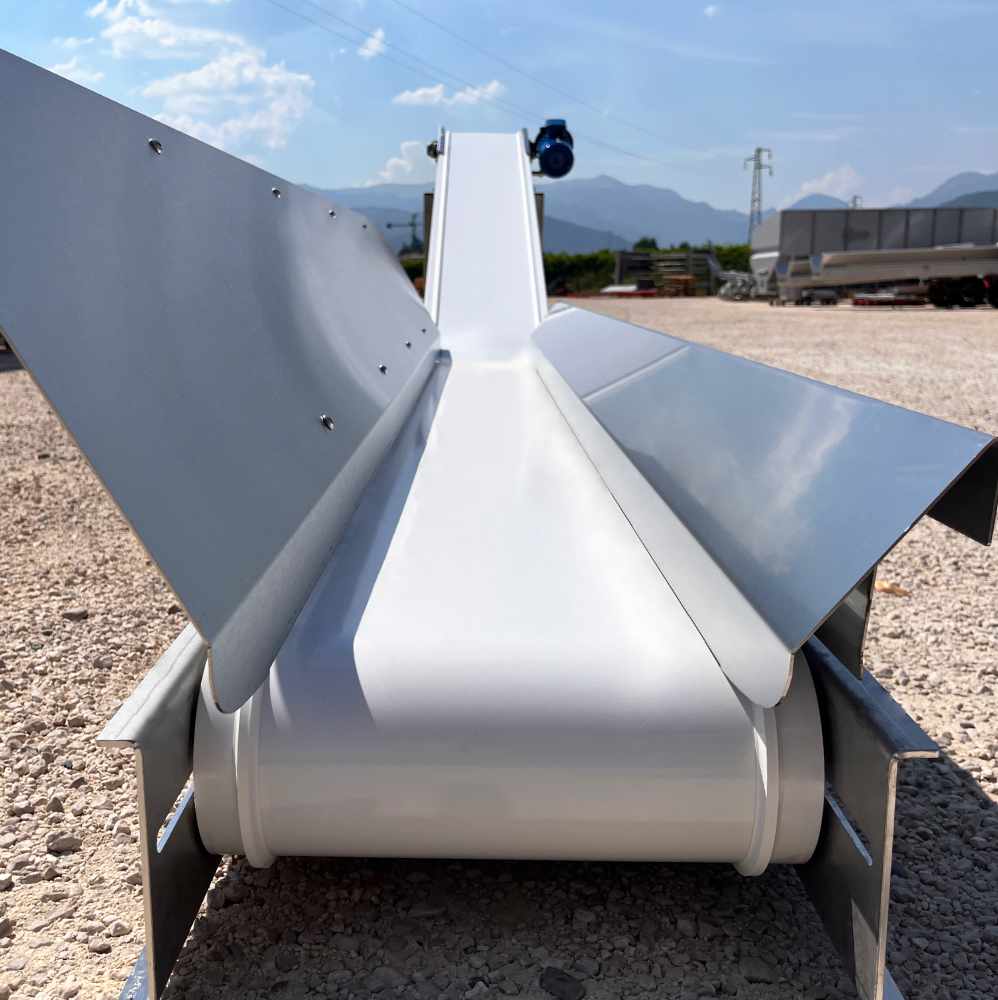

Fossil flour conveyor belts



Our belt conveyors for fossil flour are thoroughly implemented in AISI304 stainless steel, PVC mat for the evacuation of fossil flour and filtering waste.


All our belts are provided with scraper with gravity counterweight so to keep the mat surface clean and with two rubber profiles fixed to the side walls to avoid the dripping of any liquid, which may be on the mat.


Each machine is provided, upon request, with a support structure, with adjustable feet, which, in case of need, allow to change the belt inclination.




DataSheet


-          Length: 2500, 3000, 3500, 4000, 4500, 5000, 5500, 6000, 6500, 7000, 7500, 8000, 8500, 9000 mm

-          Width: 345, 445, 545 mm

-          Mat type: PVC

-          Non-dripping side walls of the transported material

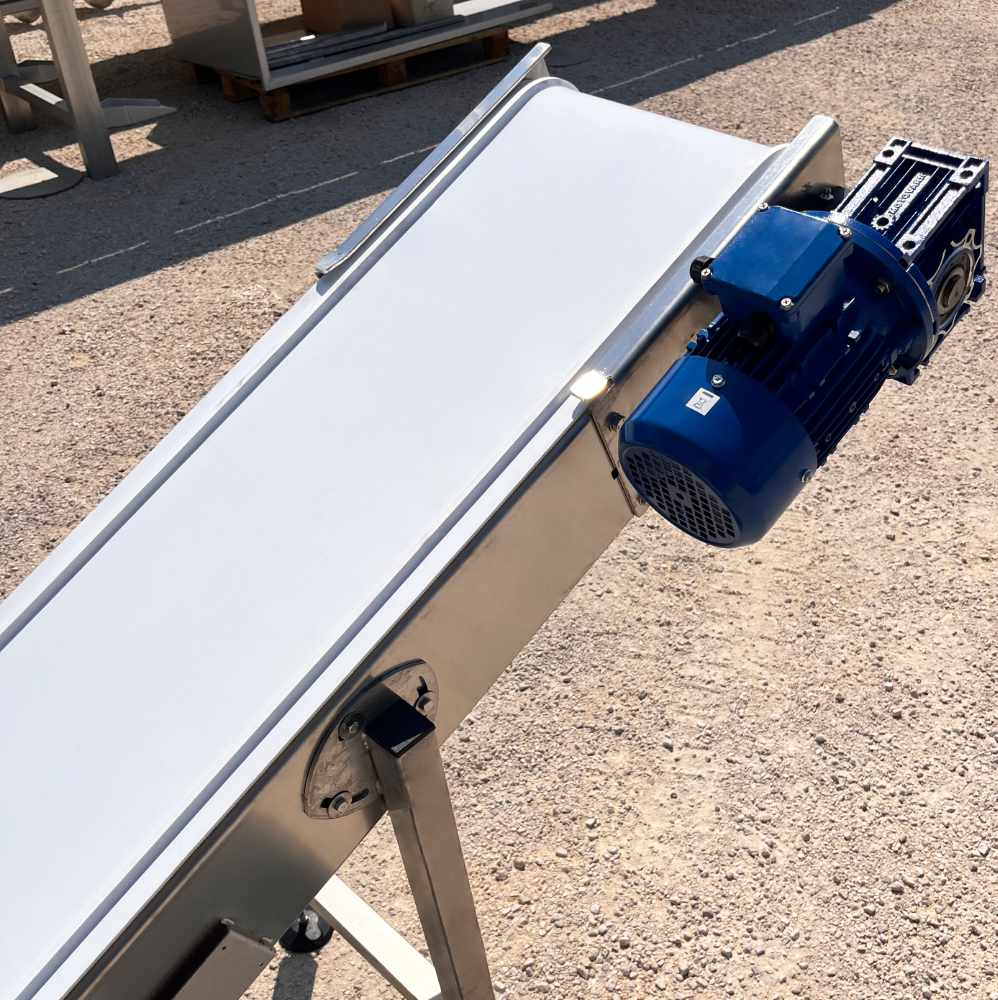

-          Reduction worm drive with 380 V 0.55 to 0.75 kW motor

-          Support trestle: with variable tilt with adjustable feet

-          Electric panel with C.E. certification
