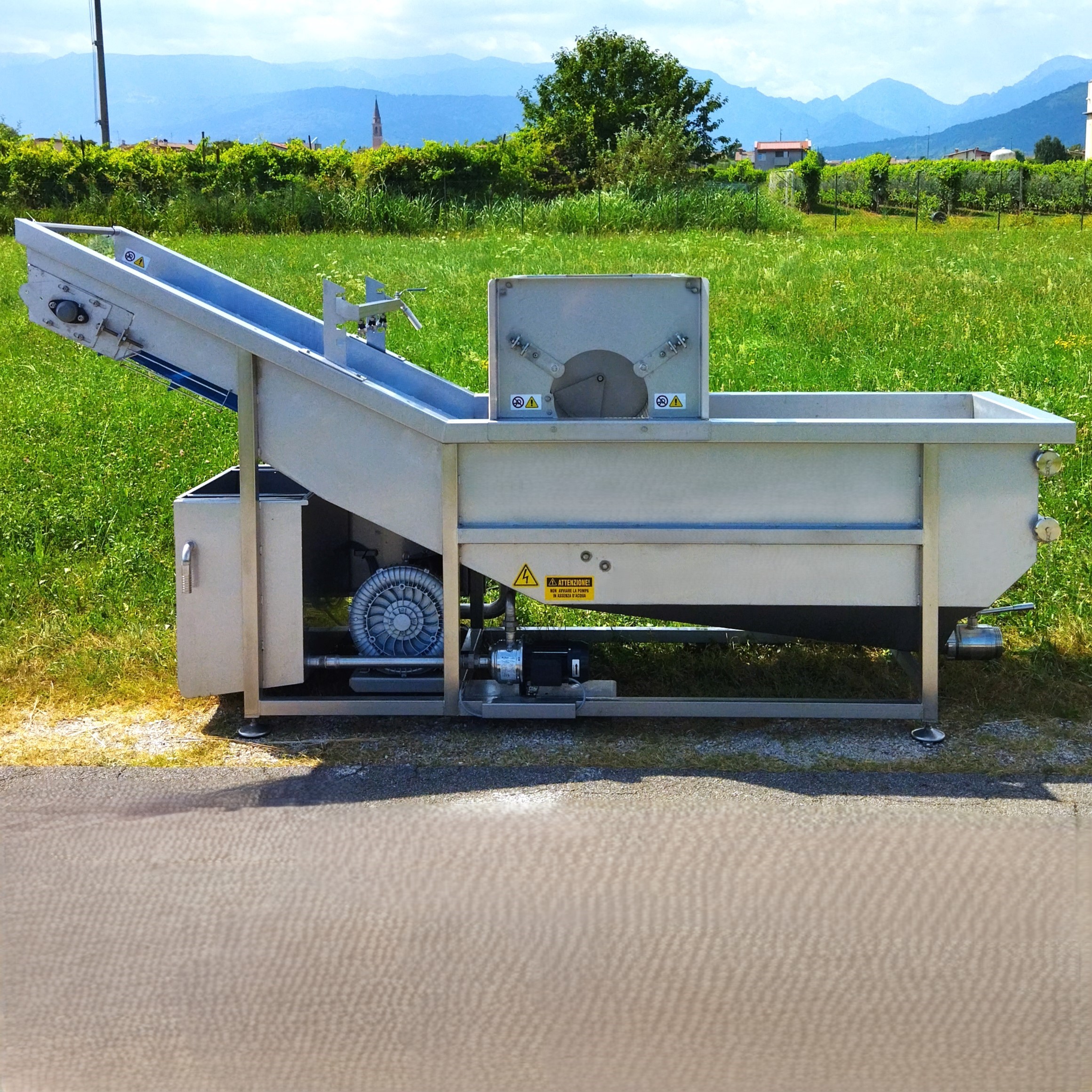

Fruit and vegetable washing tank with extraction belt



Our fruit and greens washing tank with extraction belt is thoroughly made in AISI304 stainless steel.

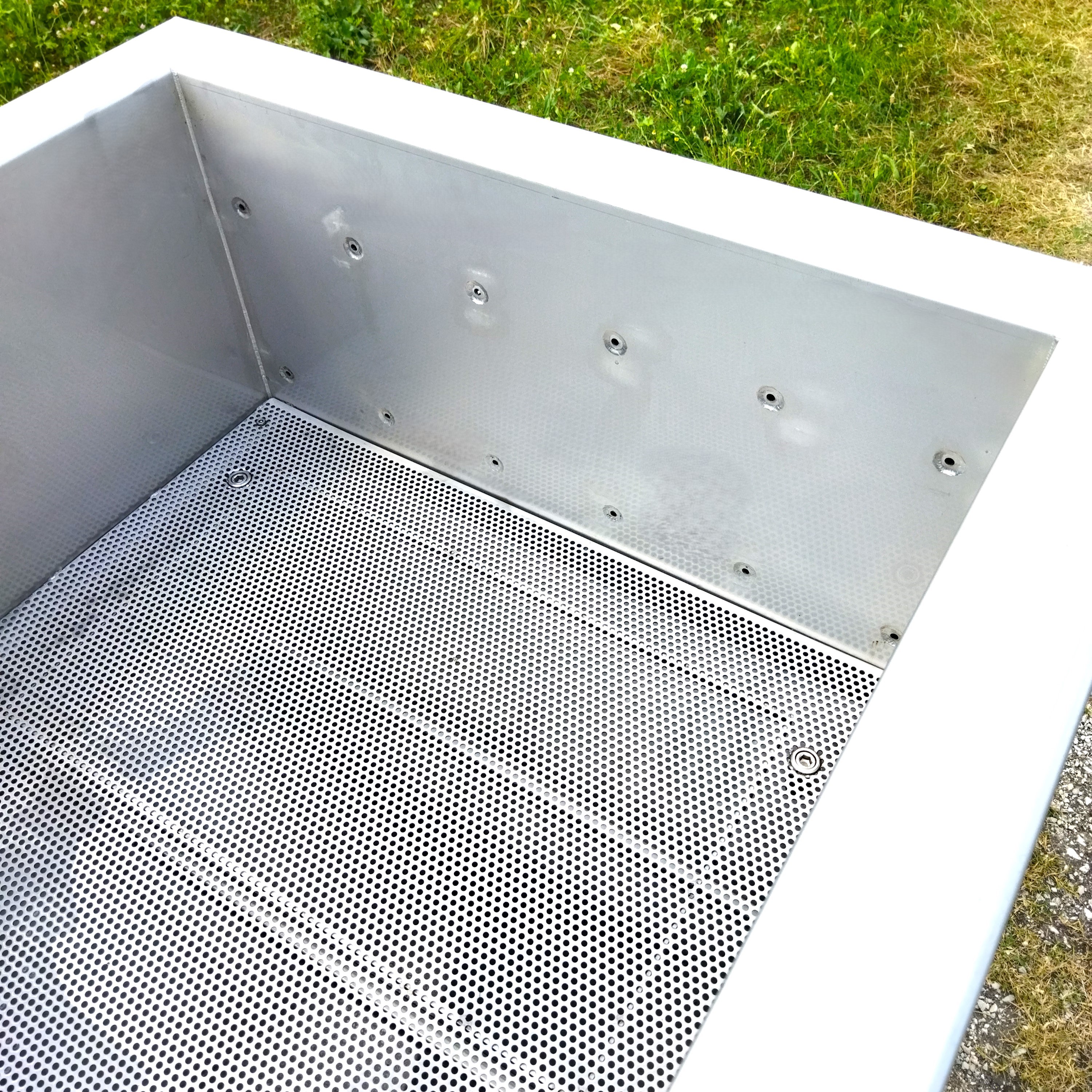

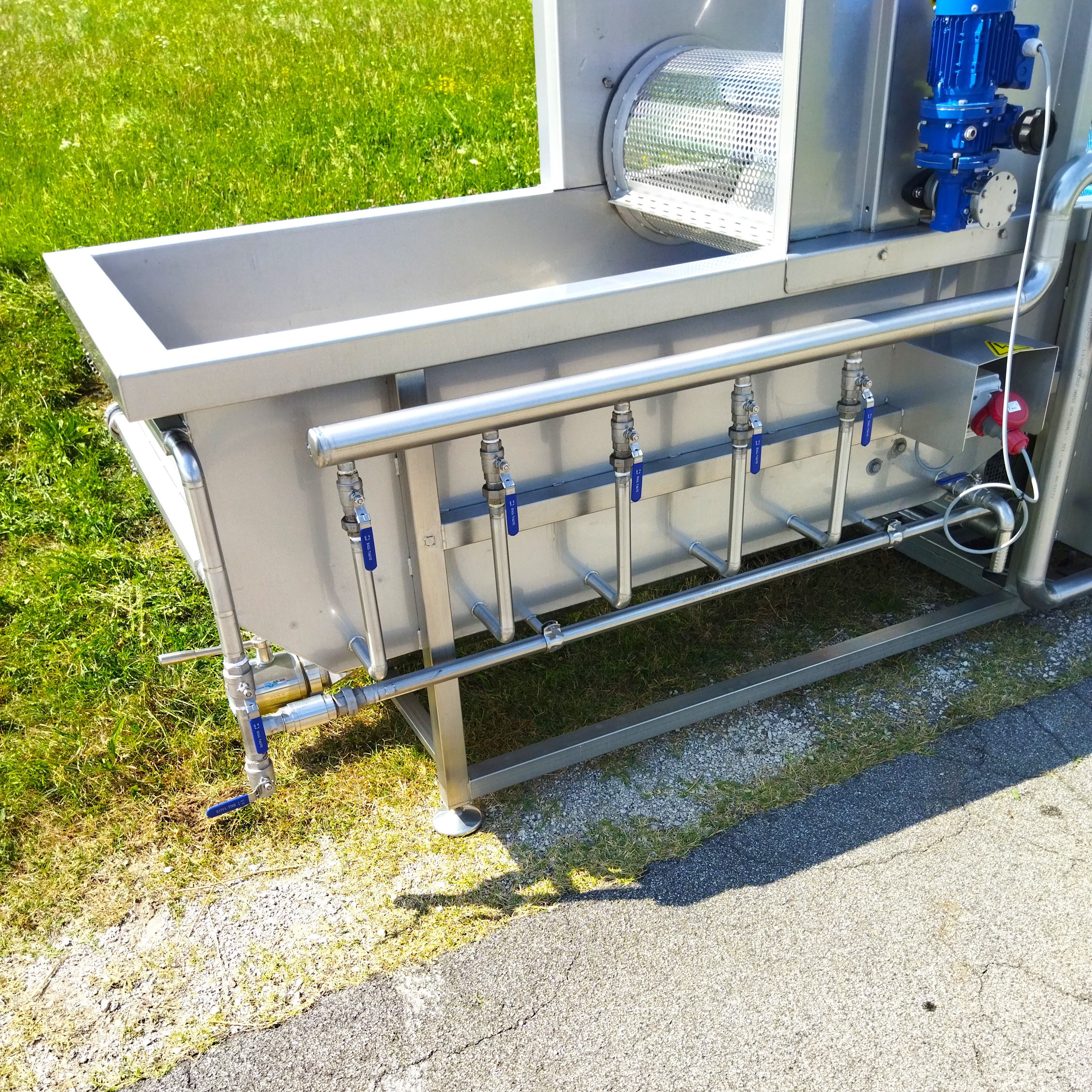

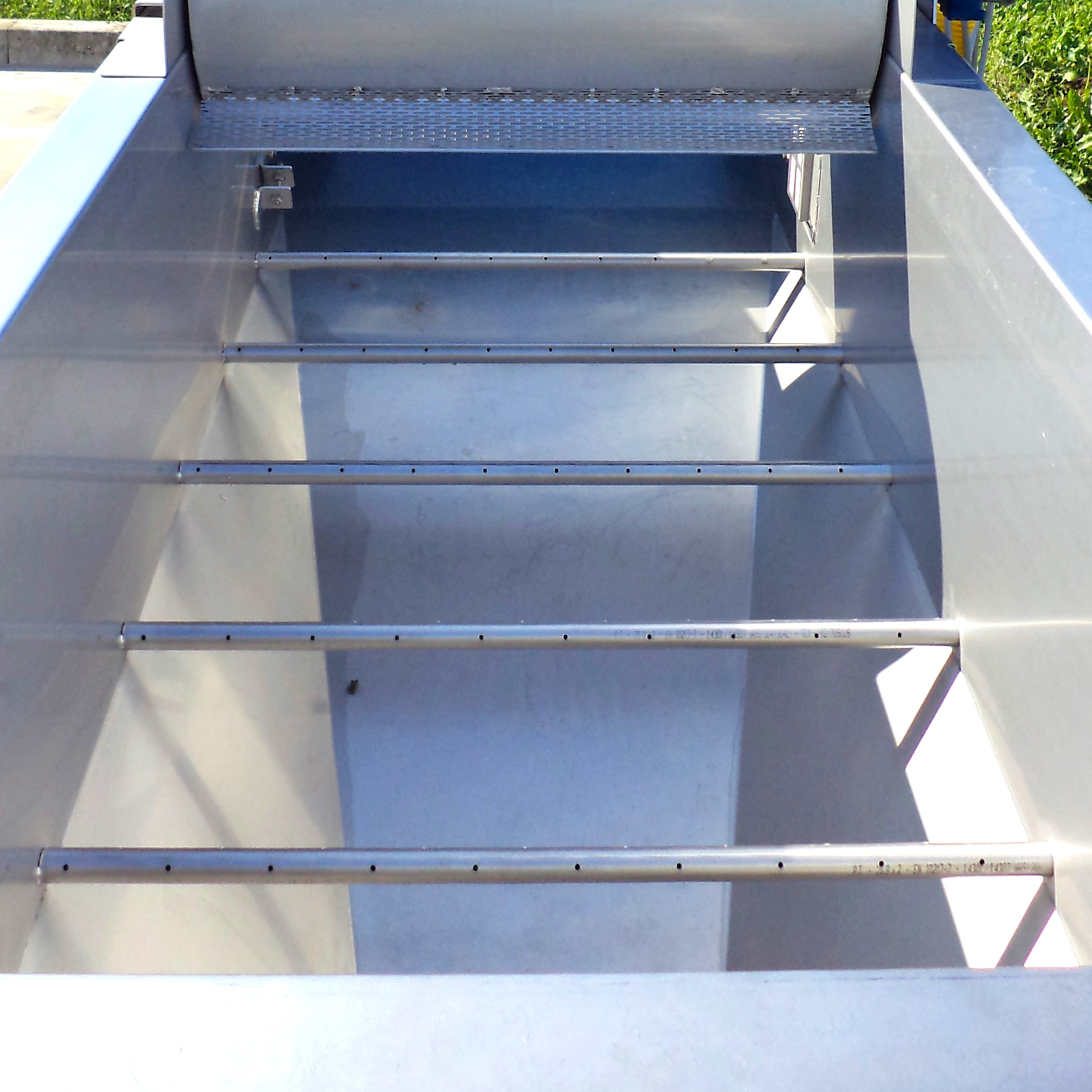

By means of a “bubbling“ washing system, achieved by blowing air through the diffusing tubes from the bottom the the tank, it creates an air flow, which pushes the greens towards the soaking drum and, then, toward the extraction belt.

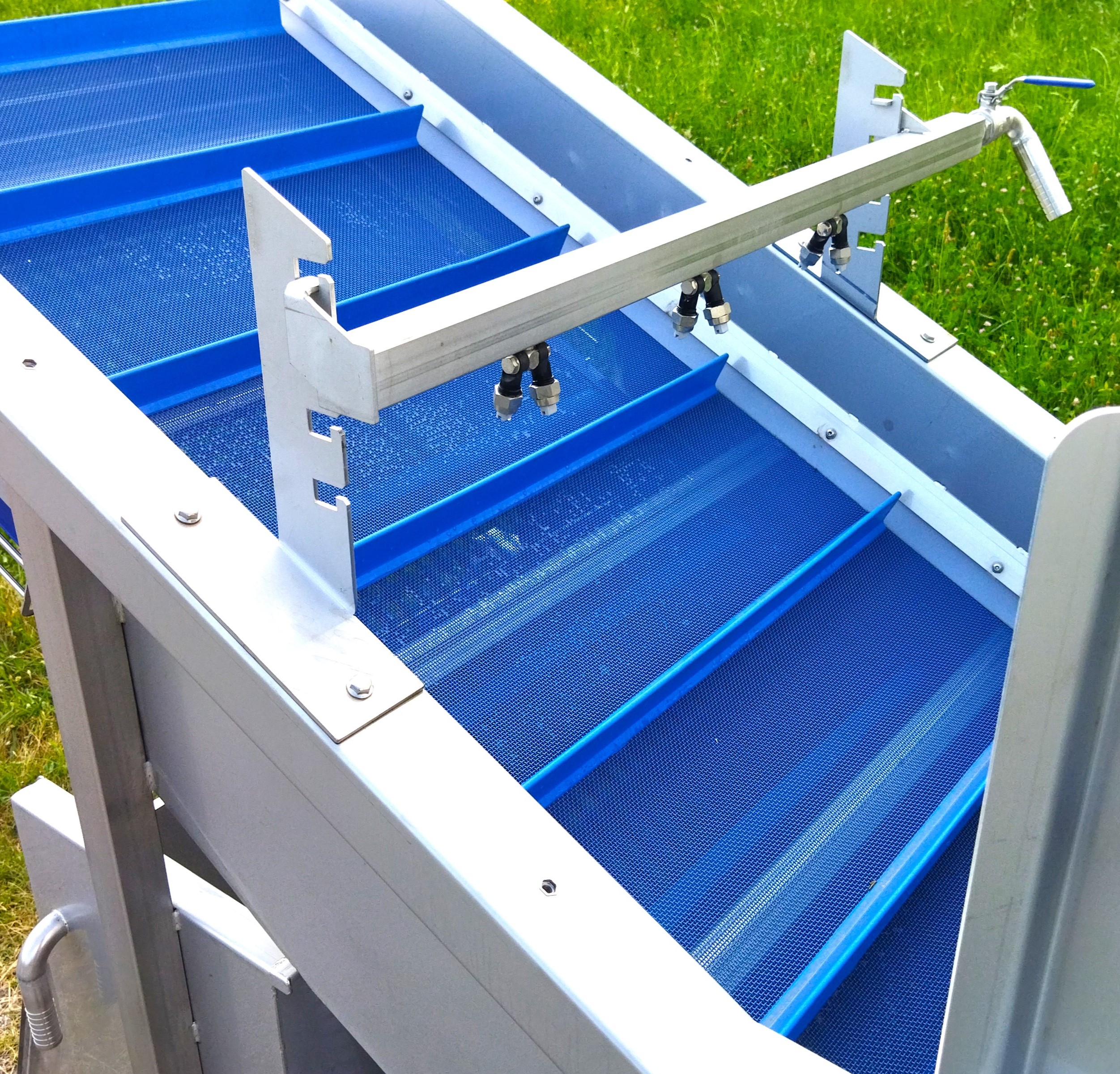

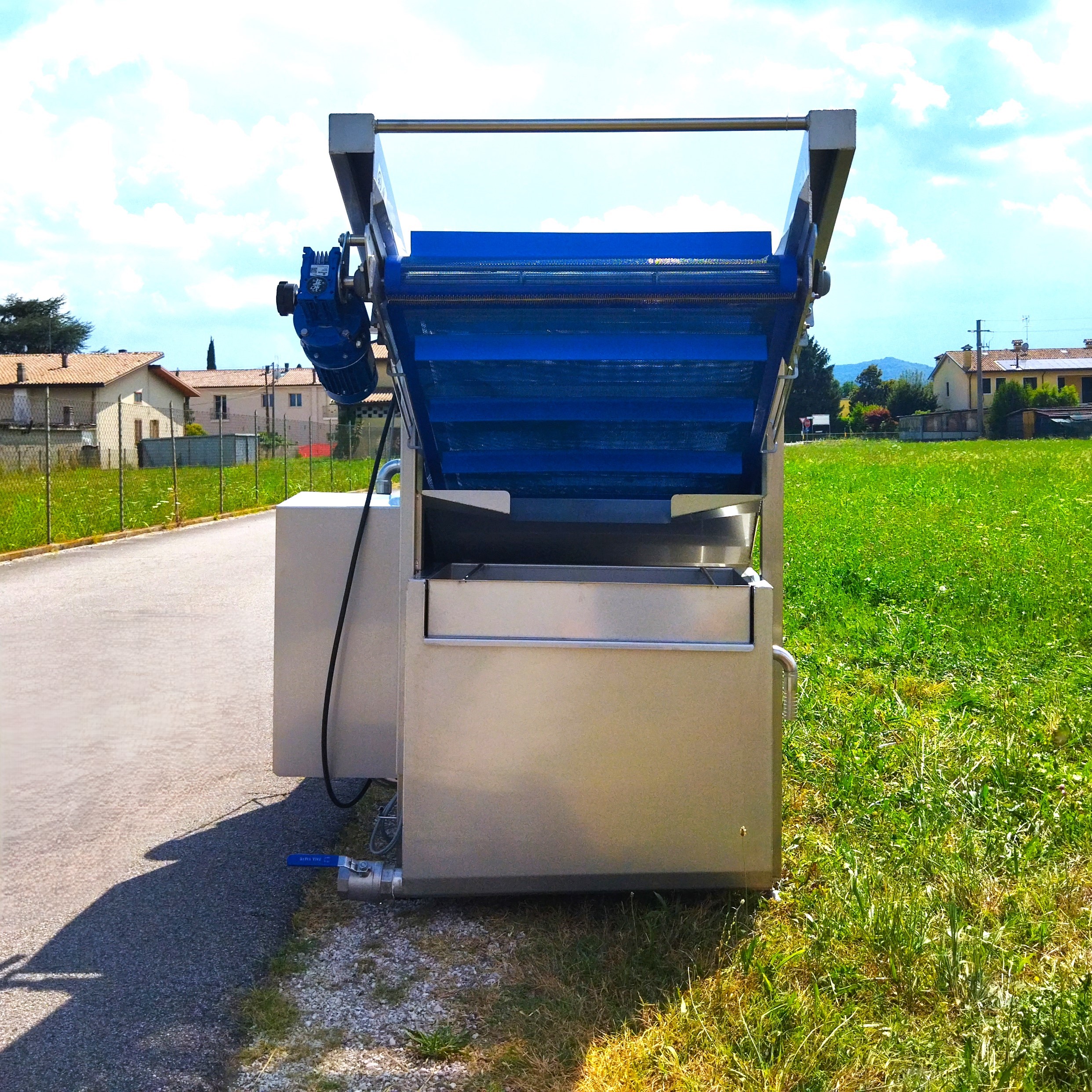

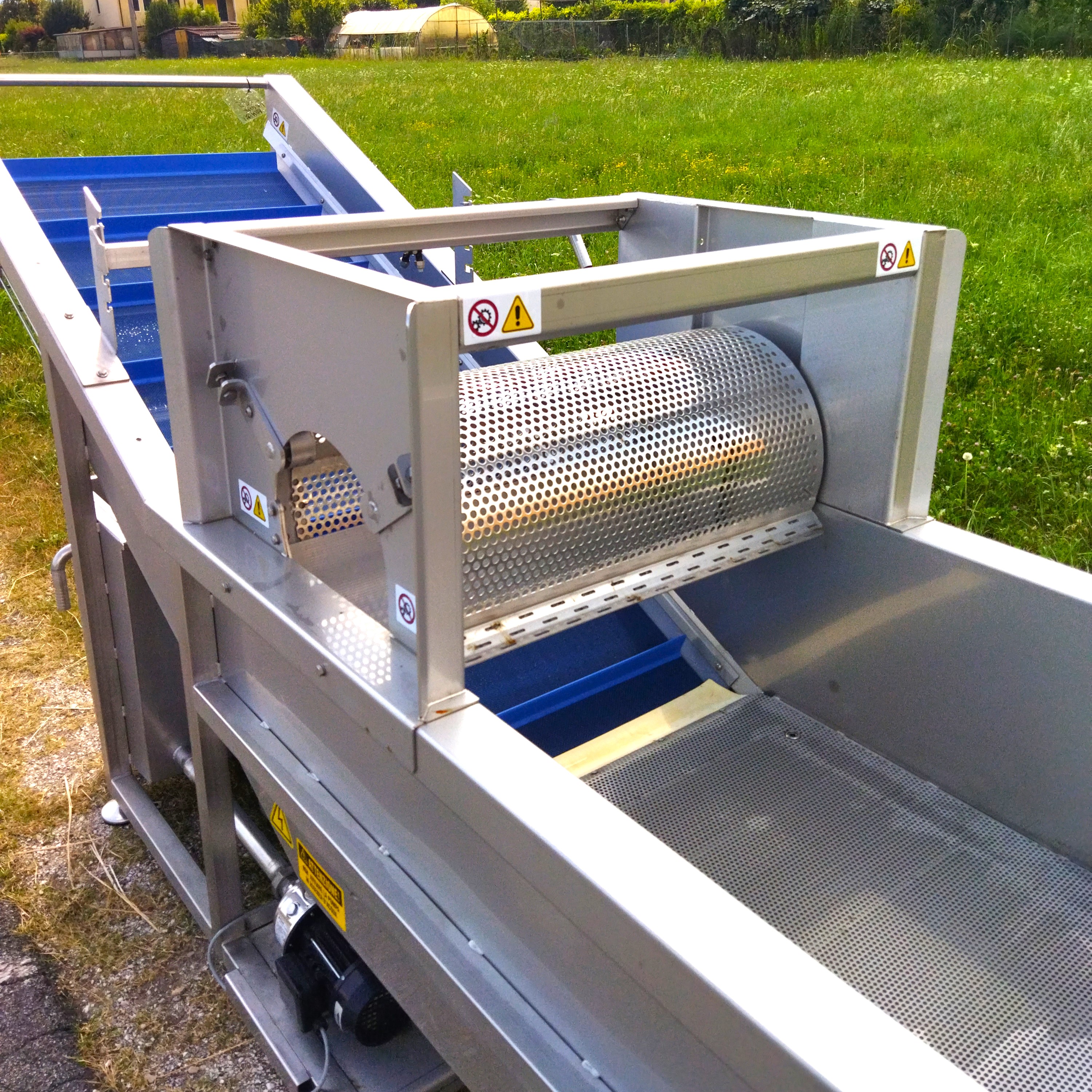

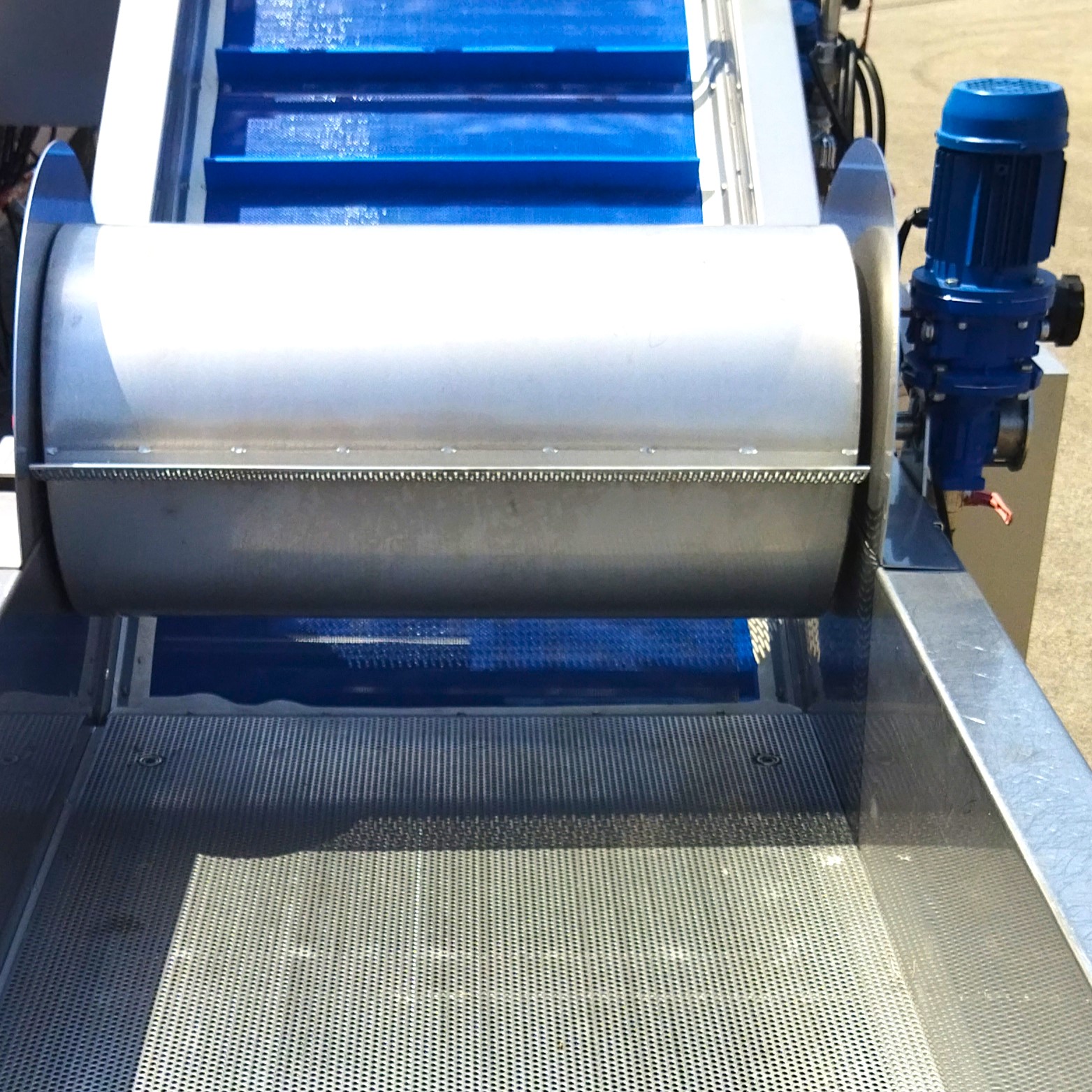

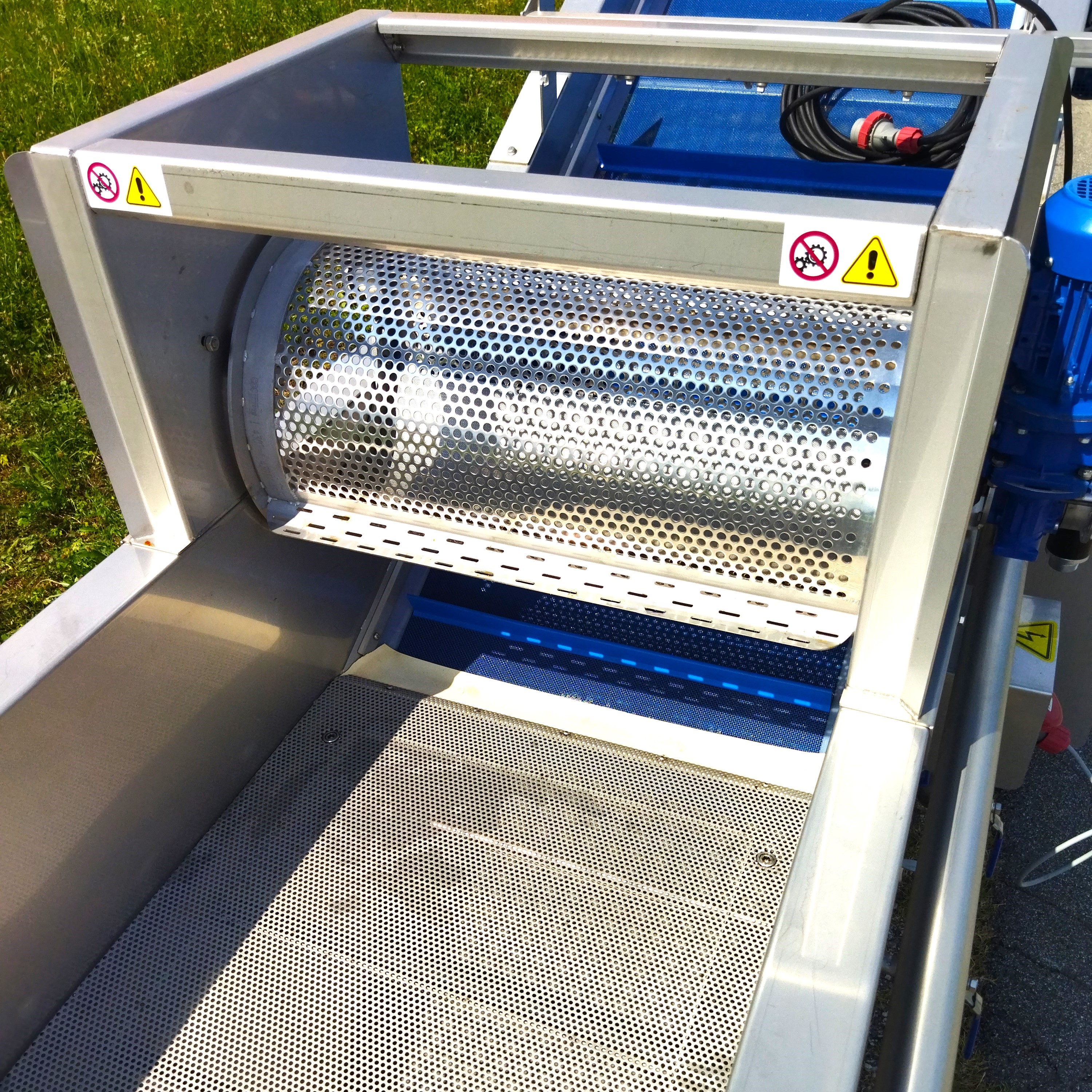

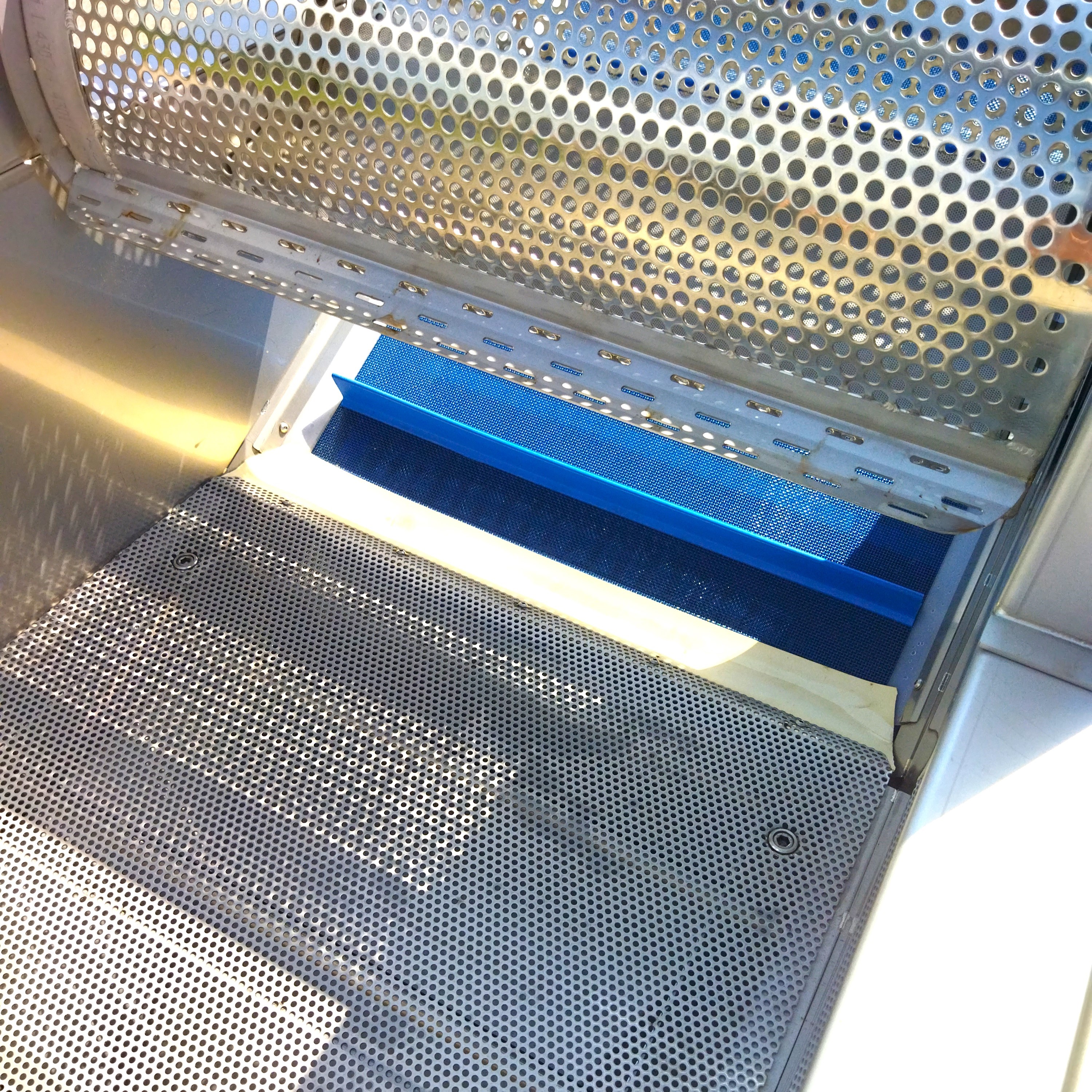

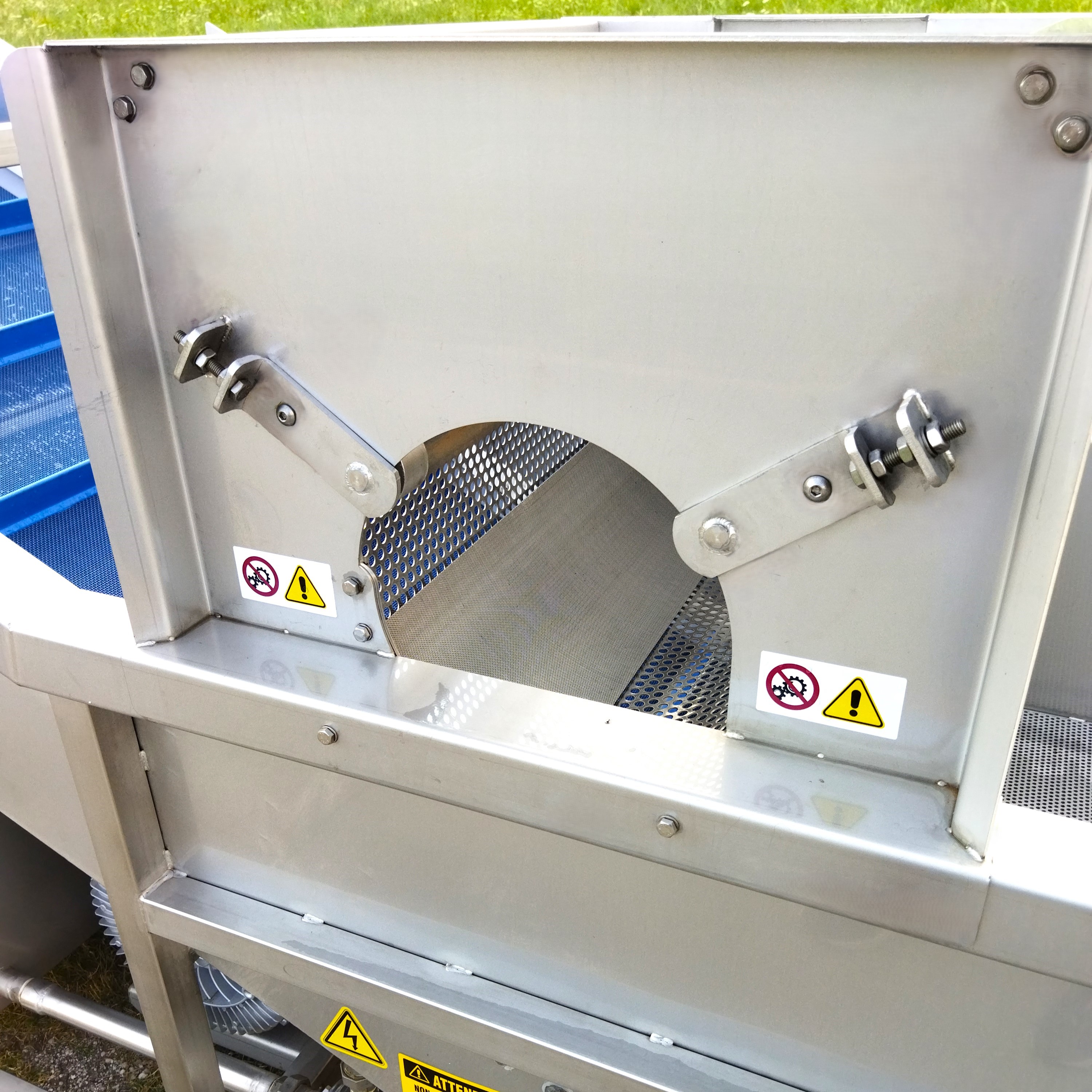

The soaking drum assures the compete washing of the product, forcing them to be soaked, while the shovels push it towards the extraction belt, implemented in perforated mesh tarp, which allows a partial drying by dripping.

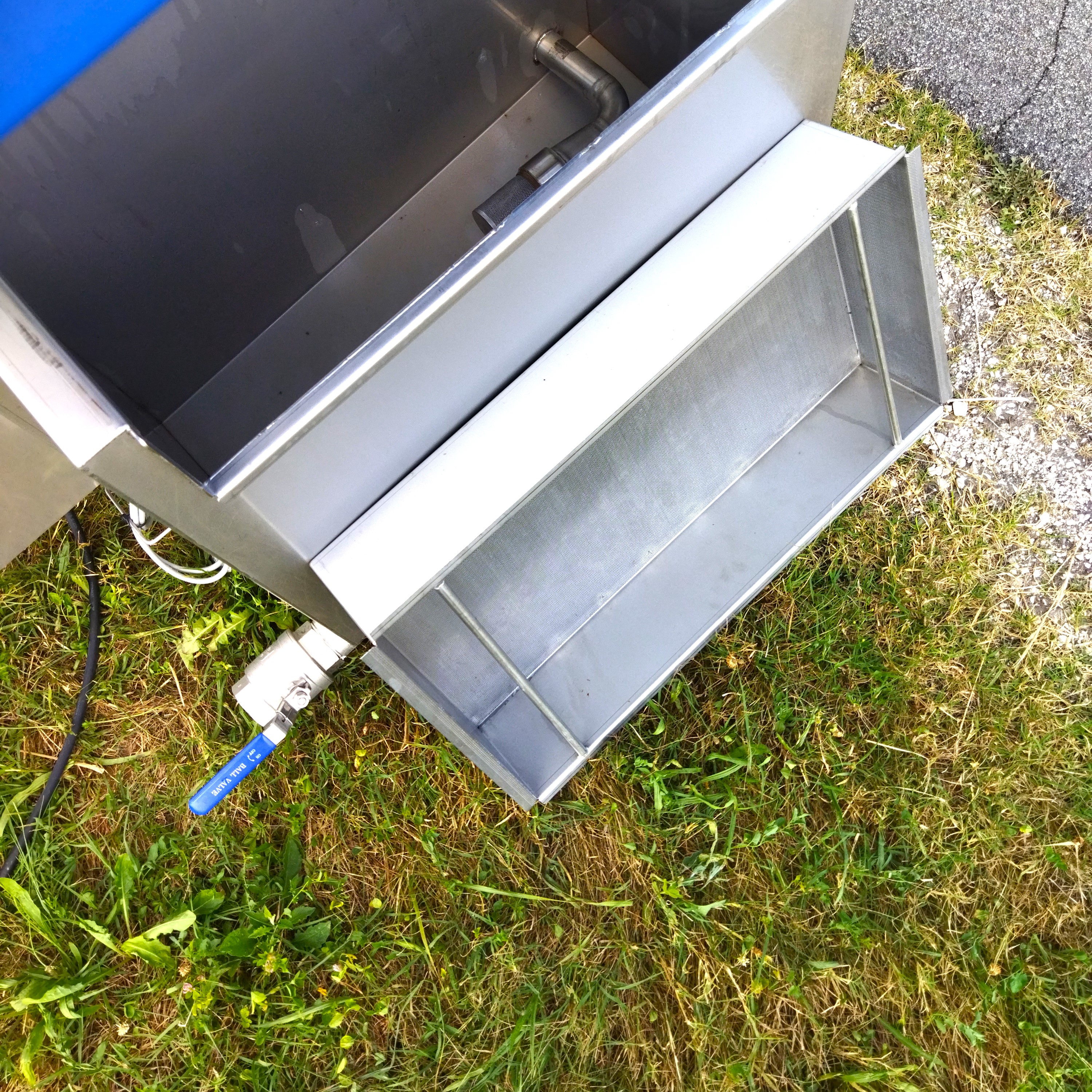

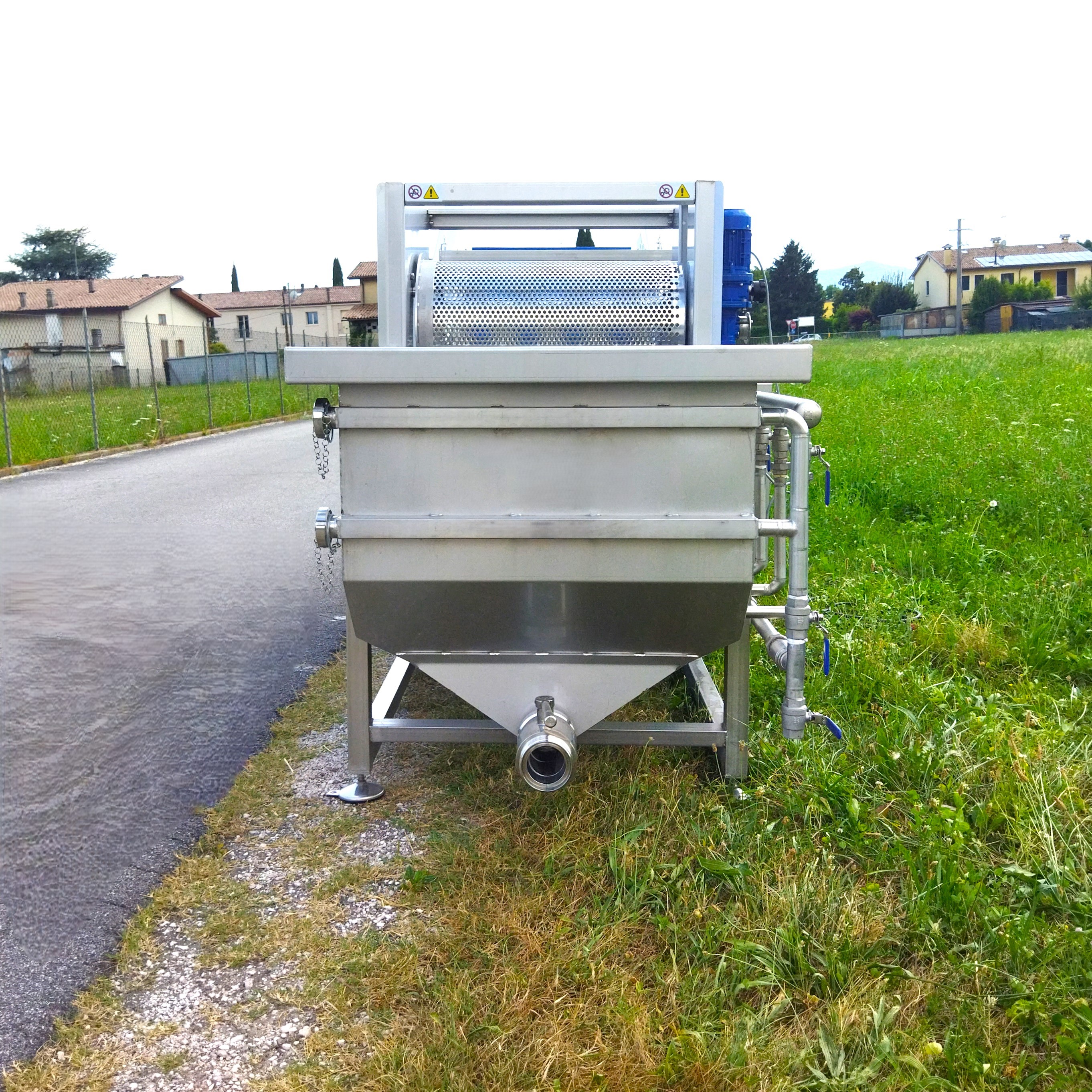

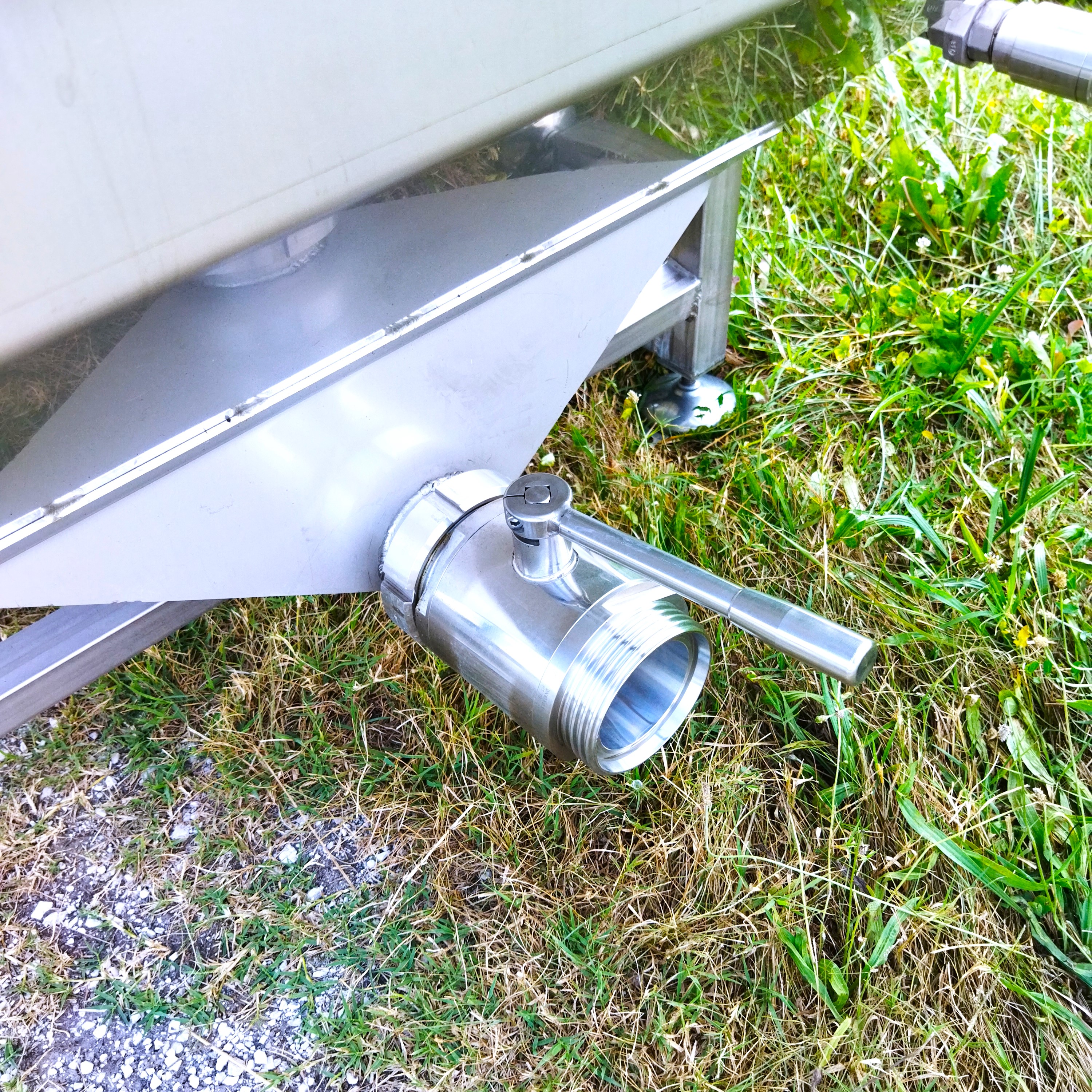

The bottom of the tank has the shape of a pyramid trunk so to assure the draining of the sediments by means of the drop-down drain valve, which can also be used during the work phases, to allow stacked dirt to exit.


Play: Vasca lavaggio ortofrutta con nastro di estrazione| Favrin Srl

DataSheet

-          Length: 3330/5800/5330 mm (washing area: 1950/4000/4000 mm)

-          Width: 800/1000/1300 mm

-          Tank height: 1010/1070/1110 mm

-          Washable product type: any "floating" fruit or vegetable, otherwise it is sufficient to install the proper "floating kit"

-          "Bubbling" washing system, by blowing in air with adjustable power

-          Recommended water renewal: about 400/1000/1300 l/h

-          Max washing speed: about 400/1000/1300 kg/h

-          Max water capacity: about 800/2000/2600 l

-          Max volume capacity: about 1000/2500/3250 kg/m³

-          Drop-down door valve

-          Soaking drum and extraction belt with variable speed

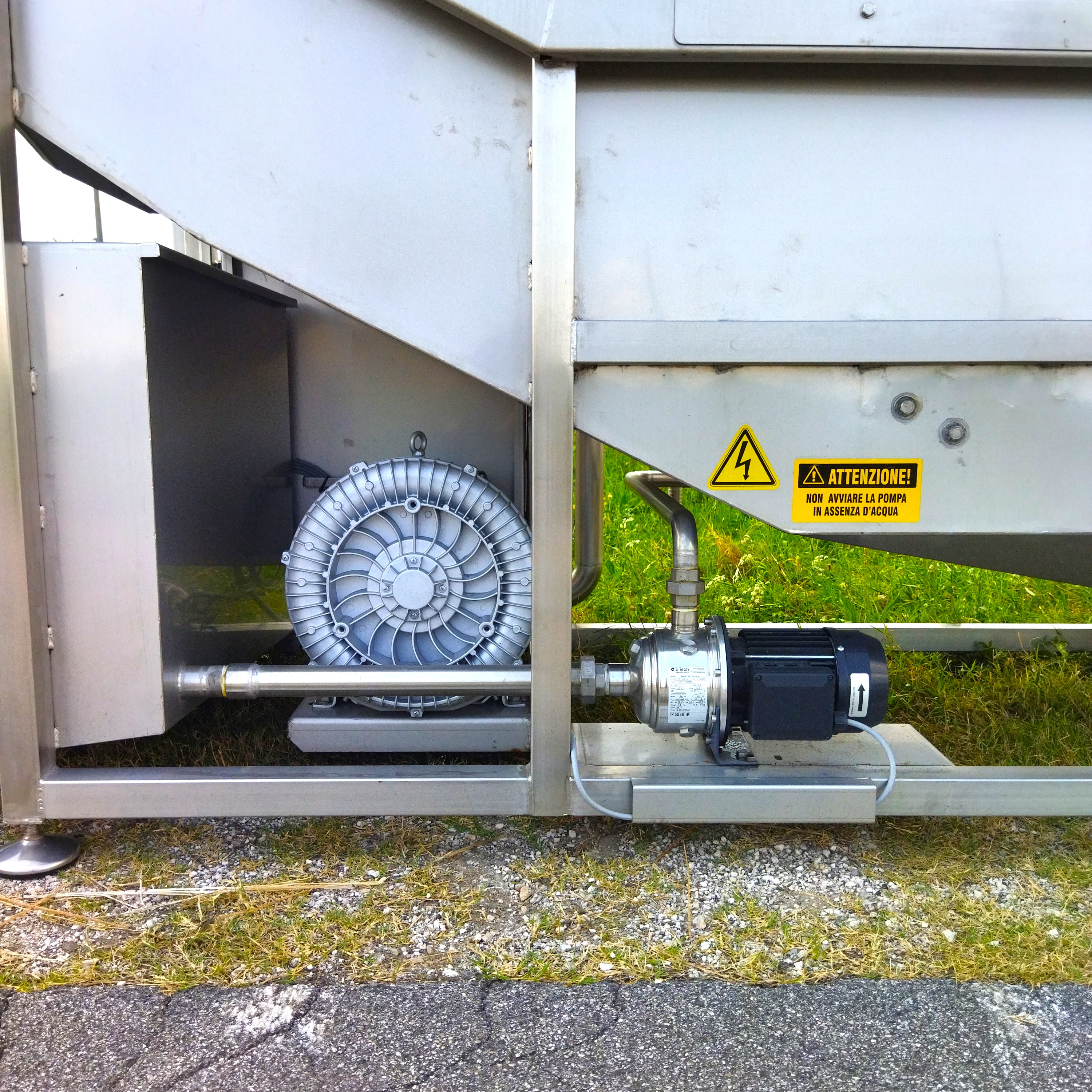

-          Air blower with suction filter and possibility to adjust the air flow

-          Water feed inlet with ø30 hose holder and 1½” outlet for "overflow"

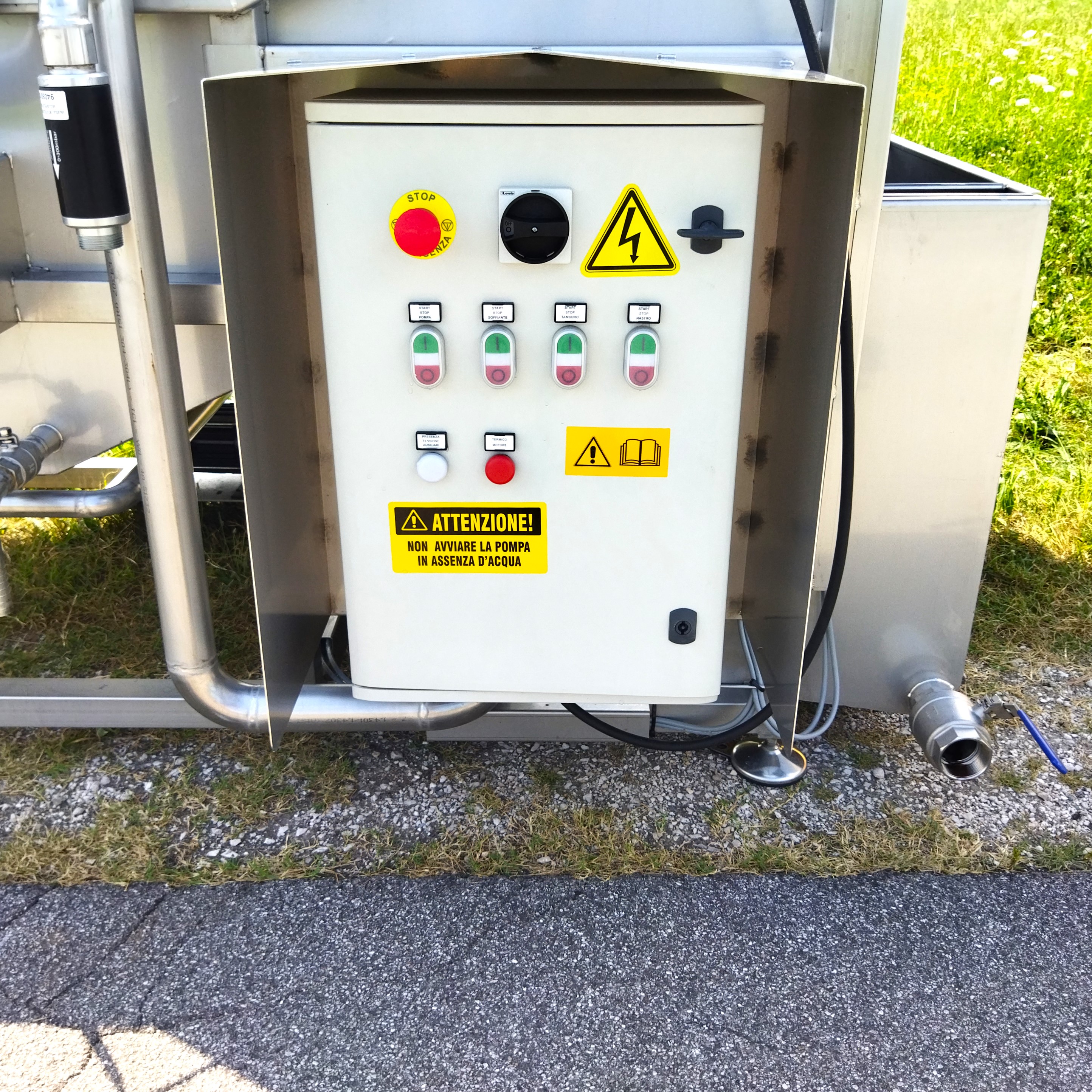

-          Electric panel with C.E. certification

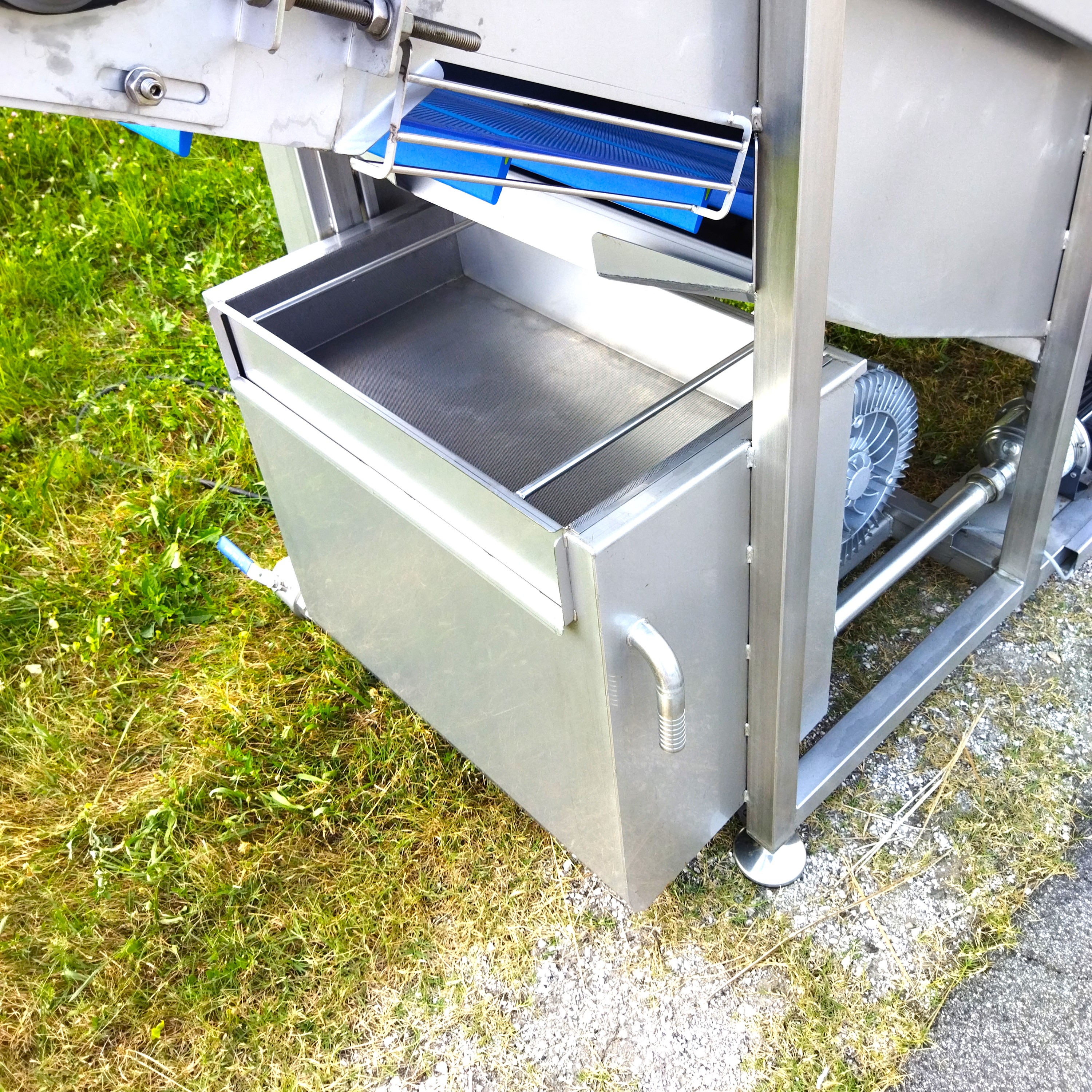

-          Optional: mat with feed dogs, belt stop on/off switch and drum with additional work surface at the end of the belt, removible net surface filter, soaking kit for boxes, floating kit
